Cassa Acustica

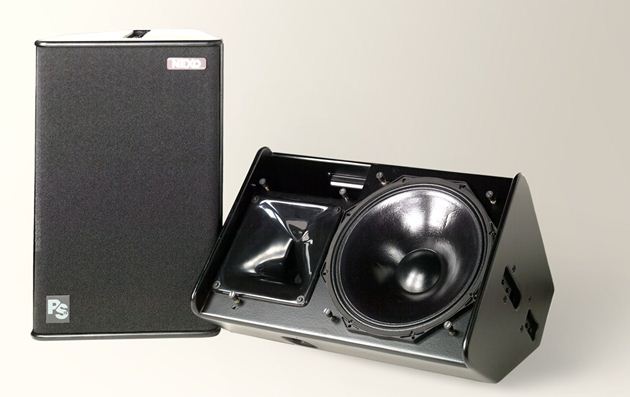

PS15-R2 LOUDSPEAKER PRODUCT FEATURES Components LF 1 x 15"(38 cm) long excursion Neodymium 8O driver. HF 1 x 2"throat, 3" Titanium diaphragm compression driver + Low Distortion, Constant Directivity Asymmetrical Dispersion Horn. Heightx Width x Depth 675 x 434 x 368 mm (26.57"x 17.08"x 14.48"). Weight 28 kg (62 lbs). Speakon Connectors 2x4 pole in & loop thru (switch passive to active inside). Construction Baltic Birch Plyfinished with textured black coating. Fittings Handles 2 metal recessed pockets. Front Finish Moulded dark grey metal grille. Flying Points Two plate connecting with external accessories. Stand fittings Built in steelstand fitting (35mm / 1 3/8"). SYSTEM SPECIFICATIONS PS15-R2 with PS15 TDController-R2 Frequency Response [a] 50 Hz- 18 kHz±3 dB. Usable Range @-6dB [a] 47 Hz- 18 kHz. Sensitivity 1W @ 1m [b] 102 dB SPL Nominal / 99 dB SPL Wideband. Nominal Peak SPL @ 1m [b] 133 to 136 dB Peak. HF Dispersion [c] 50°to 100° Horizontalx 55° Vertical Rotatable Horn, 4 positions. Directivity: Q & DI [c] Q : 16 Nominal / DI : 12 dB Nominal ( f > 1.5 kHz). Crossover Frequencies 1.1 kHz Passive or Active (internallyswitchable). Nominal Impedance Passive 8O or Active LF 8O, HF 16O. Recommended Amplifiers Passive 1000 to 2000W 8O.Active LF 1000 to 2000W 8O / HF 250 to 500W 16O. Important: Active mode only available on NXAMP. SYSTEM OPERATIONS Electronic Controller The PS15TD Controller-R2 is preciselymatched to the PS15-R2 & RS15 cabinets and includes protections. Using PS15-R2 & RS15without a properly connected PS15TDController-R2will result in poorsound quality and can damage the components. Dispersion configuration After dismounting the front grille fromitsfixings,the HF Horn can be rotated in 4 positionsfor dispersion configuration. Sub-bass The PS15-R2 can be usedwithout optional RS15 Sub-bass.Active two-way operationwith RS15 isincluded in the PS15TDController-R2.One RS15matches 2 x PS15-R2, additional RS15may be used for enhanced LF capability. Speaker Cables PS15R2 arewired 2-/2+on Input Speakonsin PassiveMode.PS1R25 arewired LF 1-/1+& HF 2-/2° on Input SpeakonsinActiveMode.Please referto RS15 UserManual for RS15 for RS15 connection. Shipping Weight & Volume 33 kg (72.6 lbs) / 0.2 cubic metres(7 cubic feet).
Tipologia di cassa
Full Range
Attiva / Passiva
1.000 Watt
SPL massimo
136 Decibel
Numero vie
Numero totale di altoparlanti
Dimenzione Woofer (in pollici)
15 Pollici
Dimenzione tweeter (in pollici)
2,0 Pollici
Risposta in frequenza
Frequenza di cross-over
900 Hertz
2 x Speakon
32 Kg.
Dimensioni (LxAxP)
675 x 434 x 368 mm (26.63" x 17.13" x 14.5")
Costruzione e finitura
Legno verniciato
Gianni Campatelli - 06/set/2013
La PS15 è una cassa che ha fatto storia e se l'ha fatta è …
